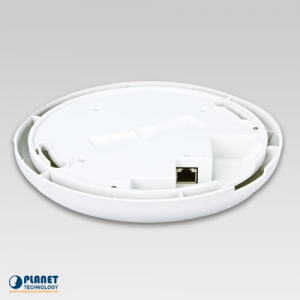

WDAP-C7200AC 1200Mbps 802.11ac Dual Band Ceiling Mount Wireless Access Point
This device has reached End-of-Life.
- Reviews (0)
Ultra-high-speed, Next-generation Wireless AP for Enterprises
PLANET’s WDAP-W7200AC, an enterprise PoE access point, features the latest 802.11ac wireless technology, advanced management functions and superior encryption standard yet cost-effectiveness. Meeting today’s demand for advanced performance and security, the WDAP-W7200AC includes multiple SSIDs, WPA / WPA2, RADIUS MAC authentication and so forth. With the female reverse polarity SMA connectors, the WDAP-W7200AC can suitably and correctly be connected to external antennas and boosters in such wireless environments as warehouses, campuses and enterprises.
Brand-new 802.11ac Wireless Technology
The WDAP-C7200AC supports IEEE 802.11a/b/g/n/ac dual band standards with 2T2R MIMO technology; therefore, it provides the wireless speed up to 300+867Mbps, which is 16X faster than the 11a access point at 5GHz frequency and 5.5X faster than the 11g access point at 2.4GHz frequency. Moreover, the WDAP-C7200AC is equipped with Gigabit Ethernet Port. Compared with the general wireless APs, the WDAP-C7200AC offers faster transmission speed for the network applications and less interference to enhance data throughput. The incredible wireless speed makes it ideal for handling multiple HD movie streams, high-resolution on-line games, stereo music, VoIPs and data streams at the same time stably and smoothly.
External High Gain Antenna and 11ac Technology Bring Excellent Performance
The WDAP-W7200AC is equipped with 5dBi detachable high gain antennas which provide strong signal and excellent coverage even in the wide-ranging or bad environment. With the RP-SMA connectors, the external antenna such as omnidirectional or unidirectional or higher gain antenna enables to establish various highly-reliable applications. Its adjustable transmit power enables the administrator to flexibly reduce or increase the output power for various environments, thus reducing interference to achieve maximum performance. To experience extremely high-speed performance, the WDAP-W7200AC adopts IEEE 802.11ac technology to extend the 802.11n 40MHz channel binding to 80MHz and the implementation of 256-QAM modulation where higher transmitting/receiving rates go up to 867Mbps in 5GHz less interference frequency band. In addition, the WDAP-W7200AC is equipped with Gigabit LAN port to eliminate the restriction of 100Mbps Fast Ethernet wired connection to let users fully enjoy the high speed provided via wireless. The IEEE 802.11ac also optimizes MU-MIMO (Multi-User MIMO) mechanism to serve multiple devices simultaneously.
Wall Mount Designed for Highly-efficient Wireless Coverage
As it is a highly-reliable industrial wall-mount design, the WDAP-W7200AC can be firmly installed on the wall conveniently. The compact, rugged IP30 metal wall-mounted housing fits easily in any space-limited location and also makes it strong enough to withstand any harsh, industrial environment. It adopts “Front Access” design, making the installing, cable wiring, LED monitoring and maintenance very easy for technicians to manage. The WDAP-W7200AC provides fixed and magnetic wall mounting installation methods making its deployment more flexible and highly efficient.
Comprehensive Wireless Security
In aspect of security, besides 64/128-bit WEP encryption, the WDAP-W7200AC is integrated with WPA / WPA2, WPA-PSK / WPA2-PSK and 802.1x RADIUS authorization to secure and protect your wireless LAN. It provides the wireless MAC filtering and SSID broadcast control to consolidate the wireless network security and prevent unauthorized wireless connection. Being an access point, the WDAP-W7200AC supports multiple SSIDs (10 sets of SSIDs). Moreover, its Wi-Fi Multimedia (WMM) mechanism provides enhanced QoS over wireless connection for better performance in multimedia transmission like on-line gaming and video streaming, which are classified as a top priority.
Flexible Enough to Achieve Various Applications
The WDAP-W7200AC supports AP, WDS Bridge, and Repeater modes, through which it provides more flexibility for users when wireless network is established. Compared with general wireless access point, the WDAP-W7200AC offers more powerful and flexible capability for wireless clients.
Flexible Deployment with PoE Feature
Compliant with the IEEE 802.3at Power over Ethernet Plus standard, the WDAP-W7200AC can be powered and networked over a single UTP cable. It thus reduces the needs of extra cables and electrical outlets on the wall, ceiling or any other place where they may not be found or may be difficult to reach. Thus, the wireless network deployment becomes more flexible.
Deployment Simplified through Centralized Management
The WDAP-W7200AC supports AP controller which can be switched to “managed AP” mode and thus can be centrally managed by PLANET WAPC-1232HP smart AP controller. It will certainly benefit the system integrators when the scale of the wireless network gets bigger. Furthermore, with user-friendly Web UI and Planet Smart Discovery supported, the WDAP-W7200AC is convenient to be managed and configured remotely in a small business wireless network.
|Interfaces LAN||1 x 10/100/1000Base-T RJ45 port
Auto-negotiation and Auto MDI/MDI-X
|Antennas Gain||2 x 2.4GHz 2.5dBi PCB antenna
2 x 5GHz 4dBi PCB antenna
|Reset Button||Reset button on the top cover
Press over 7 seconds to reset the device to factory default
Allow LED to turn off via software control
|Dimensions (Φ x H)||194 x 49 mm|
|Power Requirements||802.3at PoE, 48-56V DC input|
|Power Consumption||20W (max.)|
|Wireless Interface Specifications|
|Standard||IEEE 802.11ac (Draft 2.0) 5GHz
IEEE 802.11a/n 5GHz
IEEE 802.11b/g/n 2.4GHz
|Antenna Structure||802.11ac: 2T2R MU-MIMO
802.11n: 2T2R MIMO
|Data Modulation||802.11ac: OFDM (BPSK / QPSK / 16QAM / 64QAM / 256QAM)
802.11a/g/n: OFDM (BPSK / QPSK / 16QAM / 64QAM)
802.11b: DSSS (DBPSK / DQPSK / CCK)
|Band Mode||2.4GHz / 5GHz concurrent mode|
|Frequency Range||2.4GHz: America/ FCC: 2.412~2.462GHz
Europe/ ETSI: 2.412~2.484GHz
5GHz: America/ FCC: 5.180~5.240GHz, 5.725~5.850GHz
Europe/ ETSI: 5.180~5.240GHz
|Operating Channels||2.4GHz: America/ FCC: 1~11
Europe/ ETSI: 1~13
5GHz: America/ FCC: 36, 40, 44, 48, 149, 153, 157, 161, 165
Europe/ ETSI: 36, 40, 44, 48
*5GHz channel list will vary in different countries according to their regulations.
|Channel Width||802.11ac: 20/40/80MHz
|Data Transmission Rates||802.11ac (VHT20, Nss2-MCS8): Up to 173.3Mbps
802.11ac (VHT40, Nss2-MCS9): Up to 400Mbps
802.11ac (VHT80, Nss2-MCS9): Up to 867Mbps
802.11n (HT40): 270/243/216/162/108/81/54/27Mbps
802.11n (HT20): 130/117/104/78/52/39/26/13Mbps
802.11g: 54/48/36/24/18/12/9/6Mbps (dynamic)
802.11b: 11/5.5/2/1Mbps (dynamic)
|Transmission Distance||802.11ac (draft): up to 30m
802.11n: up to 70m
802.11g: up to 30m
The estimated transmission distance is based on the theory. The actual distance will vary in different environments.
|Max. RF Power||5GHz:
802.11ac (VHT20): 15.5dBm
802.11ac (VHT40): 15.5dBm
802.11ac (VHT80): 15.5dBm
802.11n (HT20): 15.5dBm
802.11n (HT40): 15.5dBm
802.11n: 17 ±2.5dBm
802.11b/g: 20 ±2.5dBm
802.11ac (VHT20): -91dBm @ Nss1-MCS0, -64dBm @ Nss2-MCS8
802.11ac (VHT40): -89dBm @ Nss1-MCS0, -59dBm @ Nss2-MCS9
802.11ac (VHT80): -86dBm @ Nss1-MCS0, -56dBm @ Nss2-MCS9
802.11n (HT20): -92dBm @ MCS0, -71dBm @ MCS7
802.11n (HT40): -89dBm @ MCS0, -66dBm @ MCS15
802.11a: -93 @ 6Mbps, -75dBm @ 54Mbps
802.11n 20MHz (MCS7): -69dBm @10% PER
802.11n 40MHz (MCS15): -66dBm @10% PER
802.11g (54Mbps): -74dBm @10% PER
802.11b (11Mbps): -88dBm @10% PER
|Wireless Mode||■ Universal Repeater (AP+Client)
■ Repeater (WDS+AP)
■ AP (Access Point)
■ WDS PTP (Point to Point)
■ WDS PTMP (Point to Multipoint)
|Encryption Security||■ WEP (64/128-bit) encryption security
■ WPA / WPA2 (TKIP/AES)
■ WPA-PSK / WPA2-PSK (TKIP/AES)
|Wireless Security||Provides wireless LAN ACL (Access Control List) filtering
Wireless MAC address filtering
Supports WPS (Wi-Fi Protected Setup)
Enable/ Disable SSID Broadcast
|Wireless Advanced||WMM (Wi-Fi Multimedia): 802.11e Wireless QoS
Multiple SSID: up to 5 at 2.4GHz and 5GHz, respectively
Wireless Isolation: Enables to isolate each connected wireless client from communicating with each other
IAPP (Inter Access Point Protocol): 802.11f Wireless Roaming
Provides Wireless Statistics
|Max. Clients||Wire: 253
2.4GHz Wireless: 32
5GHz Wireless: 32
|LAN||Built-in DHCP server supporting static IP address distributing
Supports 802.1d Spanning Tree
|System Management||Web-based (HTTP) management interface
SNTP time synchronize
Easy firmware upgrade
Supports Scheduling Reboot
Supports Smart Discovery Utility
|IEEE Standards||IEEE 802.11ac (Draft 2.0, 2T2R, up to 867Mbps)
IEEE 802.11n (2T2R, up to 300Mbps)
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3ab 1000Base-T
IEEE 802.3x Flow Control
|Other Protocols and Standards||CSMA/CA, CSMA/CD, TCP/IP, DHCP, ICMP, SNTP|
|Environment & Certification|
|Temperature||Operating: 0 ~ 50 degrees C
Storage: -40 ~ 70 degrees C
|Humidity||Operating: 10 ~ 90% (non-condensing)
Storage: 5 ~ 90% (non-condensing)
|Regulatory||FCC Part 15B & 15C, IC, RoHS|
