Module for CS-6303R
The CS6-M24S8X is a 24-Port 1000X SFP + 8-Port 10G SFP+ managed switch module for CS-6303R.
$3,200.00
The CS6-M24S8X is a 24-Port 1000X SFP + 8-Port 10G SFP+ managed switch module for CS-6303R.
The CS6-M24S8X is a 24-Port 1000X SFP + 8-Port 10G SFP+ managed switch module for CS-6303R.
| Hardware Specifications | |||
|---|---|---|---|
| Total Number of Slots | 3 | ||
| Max. Management Module | 2 (slot 2 and 3) Supports dual master control redundancy and automatic recovery |
||
| Max. Switch Module | 2 (slot 1 and 2) | ||
| Number of Power Supply Bays | 3 | ||
| Number of Fan Trays | 1, hot-pluggable (2 axial fans) | ||
| Dimensions (W x D x H) | 482.6 x 376.2 x 178.2 mm (with rack-mount kit) 4U high |
||
| Weight | 11kg (empty) 14.4kg (Chassis with 1 AC power module and 1 management module) |
||
| Power Requirement | AC: Input 100-240V~, 5A Max 50~60 Hz DC: Input 36-72V , 12.7A Max |
||
| Power Consumption | <350W | ||
| Management Module | |||
| Module Name |
|
||
| Management Port | One 10/100/1000BASE-TX RJ45 port | ||
| Console | One RJ45-to-RS232 serial port (9600, 8, N, 1) | ||
| USB | 1 x USB2.0 Type A for USB Storage device use | ||
| Button | Reset button: System reboot only | ||
| 10/100/1000 RJ45 Ports |
|
||
| 100/1000BASE-X SFP Ports |
|
||
| 10G SFP+ Ports |
|
||
| Available Switch Modules | |||
| CS6-S24S8X | 24-Port 1000BASE-X SFP + 8-Port 10GBASE-X SFP+ Backward compatible with 100BASE-FX SFP transceivers |
||
| CS6-S24T8X | 24-Port 10/100/1000BASE-T + 8-Port 10GBASE-X SFP+ SFP+ slot is backward compatible with 1000BASE-X SFP transceivers |
||
| CS6-S48T | 48-Port 10/100/1000BASE-T | ||
| CS6-S48S | 48-Port 1000BASE-X SFP Backward compatible with 100BASE-FX SFP transceivers |
||
| CS6-S24T24S | 24-Port 10/100/1000BASE-T + 24-Port 1000BASE-X SFP | ||
| CS6-S16X | 16-Port 10GBASE-X SFP+ Backward compatible with 1000BASE-X SFP transceivers |
||
| CS6-S4Q | 4-Port 40GBASE-X QSFP+ Supports 40GBASE-SR4/LR4 QSFP+ transceivers and 40G QSFP+ to 4x10G SFP+ breakout cable |
||
| CS6-16PON4C4S4X | 16-Port xPON + 4-Port Gigabtit TP/SFP + 4-Port 1000BASE-X SFP + 4-Port 10GBASE-X SFP+ SFP+ slot is backward compatible with 1000BASE-X SFP transceivers |
||
| Total Port Capacity | |||
| Max. 10/100/1000BASE-T | 120 | ||
| Max. 1000BASE-X SFP Ports | 120 | ||
| Max. 10G SFP+ Ports | 40 | ||
| Max. 40G QSFP+ Ports | 8 | ||
| Max. GPON Ports | 48 | ||
| Switching Performance | |||
| Switch Processing Scheme | Store-and-Forward | ||
| Switch Throughput | 552/1104 Mpps | ||
| ACL Table | Ingress Filter: 2816 Egress Filter: 512 |
||
| Routing Table | IPv4 Protocol: 16K IPv6 Protocol: 16K |
||
| MAC Address Table | 32K | ||
| ARP Table | IPv4 16K \ IPv6 8K | ||
| VLAN Table | 4K VLAN entries | ||
| Shared Data Buffer | 32MB | ||
| Multicast Table | Layer3 2K Layer2 2K |
||
| Flow Control | IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex |
||
| Jumbo Frame | 9216Bytes | ||
| FLASH | 64Mbytes | ||
| RAM | 1Gbytes | ||
| IPv4 Layer 3 Functions | |||
| IP Routing Protocol | RIP v1/v2 OSPFv2 BGP (Border Gateway Protocol) Static routing |
||
| Multicast Routing Protocol | PIM-DM and PIM-SM PIM-SSM |
||
| Routing Interface | 256 | ||
| Routing Functions | VRRP Policy routing Load balance through equal-cost routing GR (Graceful Restart) of OSPF and BGP BFD (Bidirectional Forwarding Detection) for OSPF and BGP IS-IS, Intermediate system to intermediate system |
||
| IPv6 Layer 3 Functions | |||
| IP Routing Protocol | RIPng OSPFv3 BGP4+ |
||
| Multicast Routing Protocol | PIM-DM and PIM-SM PIM-SSM |
||
| Routing Features | Manual tunnel ISATAP tunnel 6-to-4 tunnel |
||
| IPv6 Functions | ICMPv6, DHCPv6, ACLv6, IPv6 Telnet IPv6 Neighbor Discovery Path MTU Discovery |
||
| Layer 2 Functions | |||
| Port Configuration | Port disable/enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Flow control disable/enable Bandwidth control on each port Port loopback detect |
||
| Port Mirroring | TX/RX/Both Many to 1 |
||
| Link Aggregation | Supports link aggregation cross switch module | ||
| VLAN | IEEE 802.1Q tag-based VLAN, IEEE 802.1ad Q-in-Q VLAN stacking/tunneling GVRP for VLAN management Private VLAN Up to 4K VLAN groups |
||
| Spanning Tree Protocol | IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) BPDU protection, root protection |
||
| IPv4 IGMP Snooping | IPv4 IGMP v1/v2/v3 snooping IPv4 Querier mode support IGMP Filtering and IGMP Throttling IGMP Proxy reportin IGMP mmulticast forwarding Up to 8K multicast groups |
||
| IPv6 MLD Snooping | IPv6 MLD v1/v2 snooping Multicast VLAN Register (MVR) Up to 8K multicast groups |
||
| QoS | 8 priority queues on all switch ports Scheduling for priority queues Weighted Round Robin (WRR) Strict priority (SP) SP+WRR Traffic classification: IEEE 802.1p CoS DSCP DiffServ Precedence TOS VLAN ID IP ACL MAC ACL Policy-based ingress and egress QoS 802.1p and DSCP priority remark |
||
| Storm Control | Suppression of broadcast, multicast and unknown unicast packet | ||
| Bandwidth Control | Ingress and Egress At least 64Kbps stream |
||
| Ring | MSTP, IEEE 802.1s Multiple Spanning Tree Protocol | ||
| Security Functions | |||
| Access Control List | Supports Standard and Expanded ACL IP-based ACL MAC-based ACL Time-based ACL ACL based on: MAC Address IPv4/IPv6 IP Address Protocol-number sport/dport ToS/Precedence Ingress Filter: 2560 entries Egress Filter: 1024 entries |
||
| Security | MAC address limitation and MAC address filtering MAC sticky (IP + MAC + Port binding) Port isolation DHCP snooping, DHCP option 82 Dynamic ARP inspection IP source guard Defined against DoS or TCP attacks |
||
| AAA | TACACS+ and IPv4/IPv6 over RADIUS | ||
| Network Access Control | IEEE 802.1x port-based network access control | ||
| Management Functions | |||
| System Configuration | Console, Telnet and SSH Web browser SNMP v1/v2/v3 |
||
| Secure Management Interfaces | SSHv2, SSLv3 Maximum 8 sessions for SSH and Telnet connection |
||
| Management Interface | CLI/MGMT/Telnet/SSH | ||
| System Management | IPv4 and IPv6 dual stack management SNMP MIB and TRAP SNMP RMON 1, 2, 3, 9 four groups Firmware upgrade by TFTP protocol through Ethernet network Configuration upload/download through TFTP protocol Supports IEEE 802.1ab LLDP protocol NTP and SNTP client RADIUS authentication for IPv4/IPv6 login user name and password Statistics analysis of sFlow and Netflow |
||
| Event Management | Remote syslog System log |
||
| SNMP MIBs | RFC 1213 MIB-II RFC 1215 Internet Engineering Task Force RFC 1271 RMON RFC 1354 IP-Forwarding MIB RFC 1493 Bridge MIB RFC 1643 Ether-like MIB RFC 1907 SNMPv2 RFC 2011 IP/ICMP MIB RFC 2012 TCP MIB RFC 2013 UDP MIB RFC 2096 IP forward MIB RFC 2233 if MIB RFC 2452 TCP6 MIB RFC 2454 UDP6 MIB RFC 2465 IPv6 MIB RFC 2466 ICMP6 MIB RFC 2573 SNMPv3 notification RFC 2574 SNMPv3 VACM RFC 2674 Bridge MIB Extensions |
||
| Standards Conformance | |||
| Regulatory Compliance | FCC Part 15 Class A, CE | ||
| Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3z 1000BASE-SX/LX IEEE 802.3ab Gigabit 1000T IEEE 802.3ae 10Gigabit Ethernet IEEE 802.3ba 40Gigabit Ethernet IEEE 802.3x Flow Control and Back Pressure IEEE 802.3ad Port Trunk with LACP IEEE 802.1d Spanning Tree protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1ad Double VLAN tagging (Q-in-Q) IEEE 802.1x Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3az Energy Efficient Ethernet RFC 768 UDP RFC 783 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 RFC 3376 IGMP v3 RFC 2710 MLD v1 RFC 3810 MLD v2 RFC 2328 OSPF v2 RFC 1058 RIP v1 RFC 2453 RIP v2 RFC 2080 RIPng for IPv6 RFC 2740 OSPFv3 for IPv6 |
||
| Environment | |||
| Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 10 ~ 90% (non-condensing) |
||
| Storage | Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 90% (non-condensing) |
||
Planet Technology USA honors its products that Planet and it’s partners engineer and manufacture. Our products sold are of the highest standards available. All products come with a TWO year limited warranty on all products sold by directly by Planet Technology USA, unless specifically stated otherwise on our product documentation. This warranty period of two years applies from the ship date to all our products which are purchased legally and owned by the original customer. If you have purchased the product from a reseller you must contact the reseller directly. Should repairs fail to recover the product Planet Technology USA will replace the product with a similar product or a suitable replacement. Other information is as follows.
Planet Technology USA assumes no responsibility for the risk of damage to any external devices (Devices that are not ours). It is the duty of the customer to check and make sure everything is compatible.
The Limited Warranty applies only to products sold directly by Planet Technology USA that can be identified as a Planet Technology USA product (by name, logo, purchase documentation). The Limited Warranty does not apply to (a) damage caused by accident, abuse, misuse, misapplication; (b) damage caused by unauthorized service performed by anyone who is not an authorized Planet Technology USA service specialist (c) a product or a part that has been modified without the written permission of Planet Technology USA; or (d) if any Planet Technology USA serial number has been removed or tampered.
Planet Technology USA warrants its products against defects in material and workmanship, under normal use and service, for the following lengths of time from the date of purchase.
If a product does not operate as warranted during the applicable warranty period, Planet Technology USA shall reserve the right, at its expense, to repair or replace the defective product or part and deliver an equivalent product or part to the customer. The repair/replacement unit’s warranty continues from the original date of purchase. All products that are replaced become the property of Planet Technology USA. Replacement products may be new or reconditioned. Planet Technology USA does not issue refunds or credit. Please contact the point-of-purchase for their return policies.
Planet Technology USA shall not be responsible for any software, firmware, information, or memory data of customer contained in, stored on, or integrated with any products returned to Planet Technology USA pursuant to any warranty.
There are no user serviceable parts inside the product. Do not remove or attempt to service the product by any unauthorized service center. This warranty is voided if (i) the product has been modified or repaired by any unauthorized service center, (ii) the product was subject to accident, abuse, or improper use (iii) the product was subject to conditions more severe than those specified in the manual.
Warranty service may be obtained by contacting Planet Technology USA within the applicable warranty period and providing a copy of the dated proof of the purchase. Upon proper submission of required documentation a Return Material Authorization (RMA) number will be issued. An RMA number is required in order to initiate warranty service support for all Planet Technology USA products. Products that are sent to Planet Technology USA for RMA service must have the RMA number marked on the outside of return packages and sent to Planet Technology USA prepaid, insured and packaged appropriately for safe shipment. Customers shipping from outside of the USA and Canada are responsible for return shipping fees. Customers shipping from outside of the USA are responsible for custom charges, including but not limited to, duty, tax, and other fees.
WARRANTIES EXCLUSIVE: IF THE PLANET TECHNOLOGY USA PRODUCT DOES NOT OPERATE AS WARRANTED ABOVE, THE CUSTOMERÂ’S SOLE REMEDY SHALL BE, AT PLANET TECHNOLOGY USA’S OPTION, REPAIR OR REPLACE. THE FOREGOING WARRANTIES AND REMEDIES ARE EXCLUSIVE AND ARE IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, EITHER IN FACT OR BY OPERATION OF LAW, STATUTORY OR OTHERWISE, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. PLANET TECHNOLOGY USA NEITHER ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR IT ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION MAINTENANCE OR USE OF PLANET TECHNOLOGY USA’S PRODUCTS.
PLANET TECHNOLOGY USA SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT IN THE PRODUCT DOES NOT EXIST OR WAS CAUSED BY CUSTOMERÂ’S OR ANY THIRD PERSONÂ’S MISUSE, NEGLECT, IMPROPER INSTALLATION OR TESTING, UNAUTHORIZED ATTEMPTS TO REPAIR OR MODIFY, OR ANY OTHER CAUSE BEYOND THE RANGE OF THE INTENDED USE, OR BY ACCIDENT, FIRE, LIGHTNING, OR OTHER HAZARD.
LIMITATION OF LIABILITY: TO THE FULL EXTENT ALLOWED BY LAW PLANET TECHNOLOGY USA ALSO EXCLUDES FOR ITSELF AND ITS SUPPLIERS ANY LIABILITY, WHETHER BASED IN CONTRACT OR TORT (INCLUDING NEGLIGENCE), FOR INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND, OR FOR LOSS OF REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF INFORMATION OR DATE, OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE, USE, PERFORMANCE, FAILURE, OR INTERRUPTION OF THE POSSIBILITY OF SUCH DAMAGES, AND LIMITS ITS LIABILITY TO REPAIR, REPLACEMENT, OR REFUND OF THE PURCHASE PRICE PAID, ATÂ PLANET TECHNOLOGY USA’S OPTION. THIS DISCLAIMER OF LIABILITY FOR DAMAGES WILL NOT BE AFFECTED IF ANY REMEDY PROVIDED HEREIN SHALL FAIL OF ITS ESSENTIAL PURPOSE.
Governing Law: This Limited Warranty shall be governed by the laws of the state of California.
Some Planet Technology USA products include software code written by third party developers. These codes are subject to the GNU General Public License (“GPL”) or GNU Lesser General Public License (“LGPL”).
THIS WARRANTY AND REMEDIES SET FORTH ABOVE ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS, WHETHER ORAL OR WRITTEN, EXPRESS OR IMPLIED, PLANET TECHNOLOGY USA SPECIFICALLY DISCLAIMS ANY AND ALL IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IF PLANET TECHNOLOGY USA CANNOT LAWFULLY DISCLAIM IMPLIED WARRANTIES UNDER THIS LIMITED WARRANTY, ALL SUCH WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY. NO PLANET TECHNOLOGY USA RESELLER, AGENT, OR EMPLOYEE IS AUTHORIZED TO MAKE ANY MODIFICATION, EXTENSION, OR ADDITION TO THIS WARRANTY. PLANET TECHNOLOGY USA IS NOT RESPONSIBLE FOR DIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH OF WARRANTY OR CONDITION, OR ANY OTHER LEGAL THEORY, INCLUDING BUT NOT LIMITED TO LOST PROFITS, DOWNTIME, GOODWILL, DAMAGE TO OR REPLACEMENT OF EQUIPMENT AND PROPERTY, ANY COSTS OF RECOVERING, OR REPRODUCING ANY PROGRAM OR DATA STORED IN OR USED WITH PLANET TECHNOLOGY USA PRODUCTS, AND ANY FAILURE TO MAINTAIN THE CONFIDENTIALITY OF DATA STORED ON THE PRODUCT.
Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages or exclusions or limitations on the duration of implied warranties or conditions, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary by state or province.
Shipping costs of products being returned are the responsibility of the customer. Cost of shipping products back to the customer will be paid by Planet Technology USA (Free ground shipping for USA – domestic customers only. International customers are responsible for shipping costs.) This warranty only applies to the customer whom purchased the product directly from Planet Technology USA.
For products which are out of warranty, please call or fax in for a RMA number. Once the products for repair are received a quote will be generated for their repair. Customer approval must be obtained before work is begun in repairing or replacing the products. Once the products are repaired, payments must be made or sent for their repair costs before they are shipped back to customers. Shipping costs both to and from the customer are billed to the Customer for products which are out of warranty.

The CS6-M24T8X is a 24-Port 10/100/1000T + 8-Port 10G SFP+ managed switch module for CS-6303R.

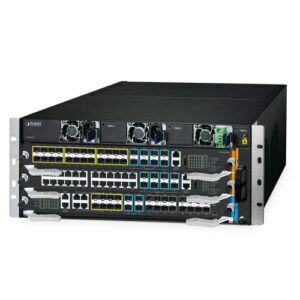

The CS-6303R is a high-density chassis switch built with three module slots and a redundant power supply.
