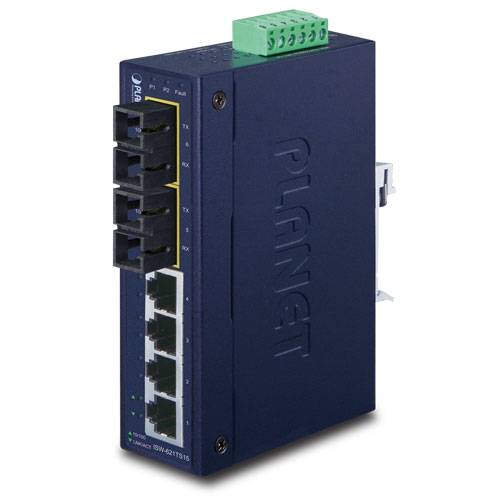

ISW-621TS15 IP30 Industrial Ethernet Switch 4-Port 10/100Base-TX + 2-Port 100Base-FX  (SM, SC 15km) (-40 ~ 75C)

ISW-621TS15 IP30 Industrial Ethernet Switch 4-Port 10/100Base-TX + 2-Port 100Base-FX (SM, SC 15km) (-40 ~ 75C)

$144.00
QTY:1
Sub Total:
$144.00

IGS-5225-4T2S L2+ Industrial 4-Port 10/100/1000T + 2-Port 1G/2.5G SFP Managed Ethernet Switch

IGS-5225-4T2S L2+ Industrial 4-Port 10/100/1000T + 2-Port 1G/2.5G SFP Managed Ethernet Switch

$352.00

IGS-5225-4T2S

The IGS-5225-4T2S, fully-managed Gigabit fiber switch for harsh environments, features 4 10/100/1000Mbps copper ports, 2 100/1000/2500X SFP ports and redundant power system.

  • Ports: 4 10/100/1000TX + 2 1000/2500X SFP
  • Type of Switch: Managed
  • Switch Fabric: 18Gbps / non-blocking
  • Max. Power Consumption: 4.8W/16.4BTU (power on w/0 any connection), 8.5W/29.2BTU (full loading)
  • Throughput: 13.39Mpps@64Bytes
  • Operating Temperature: -40 to 75°C
  • Supports: IEEE 1588v2 Transparency, ERPS Ring, DIDO, Cloudviewer App (more info. below)
  • TAA Compliant

Note: ALL Industrial Switches do NOT include a power supply. Click here to shop all Industrial Power Supply.

IGS-5225-4T2S

4-Port Managed Switch

For Harsh and Space-limited Environments

PLANET IGS-5225-4T2S, the smallest, fully-managed Gigabit fiber switch for harsh environments, features 4 10/100/1000Mbps copper ports, 2 100/1000/2500X SFP ports and redundant power system in an IP30 rugged but compact-sized case. The IGS-5225-4T2S can be installed in any difficult environment as it can operate stably under the temperature range from -40 to 75 degrees C. With such a slim enclosure, it does not need a big space to install. The switch features user-friendly yet advanced IPv6/IPv4 management interfaces, abundant L2/L4 switching functions and Layer 3 static routing capability. It allows either DIN-rail or wall mounting for efficient use of cabinet space. With 2 dual-speed SFP fiber slots, it can be flexibly applied to extend the connection distance.

IGS-5225-4T2S Features

Port Backup Mode

Via the managed interface, the IGS-5225-4T2S can be configured for port backup. When in the port backup mode, it provides rapid copper/fiber redundancy of link for highly critical Ethernet applications. The port backup mode also supports auto-recovering function. If the destination port of a packet is link-down, it will forward the packet to the other port of the backup pair.

Port Backup

Network with Cybersecurity Helps Minimize Security Risks

The IGS-5225-4T2S comes with enhanced cybersecurity to fend off cyberthreats and cyberattacks. It supports SSHv2, TLSv1.2 and SNMPv3 protocols to provide strong protection against advanced threats. Served as a key point to transmit data to customer’s critical equipment in a business network, the cybersecurity feature of the IGS-5225-4T2S protects the management and enhances the security of the mission-critical network without any extra deployment cost and effort.

Redundant Ring, Fast Recovery for Critical Network Applications

The IGS-5225-4T2S supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP), and redundant power input system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments. In a certain simple Ring network, the recovery time of data link can be as fast as 10ms.

ERPS Ring

Site to Site Fiber Link

SMTP/SNMP Trap Event Alert and Fault Alarm

The IGS-5225-4T2S provides event alert function to help to diagnose the abnormal device owing to whether or not there is a break of the network connection, or the rebooting response. It supports a Fault Alarm feature which can alert the users when there is something wrong with the switches. With this ideal feature, the users would not have to waste time finding where the problem is. It will help to save time and human resource.

Fault Alarm Feature

Layer 3 IPv4 and IPv6 Software VLAN Routing for Secure and Flexible Management

To help customers stay on top of their businesses, the IGS-5225 series not only provides ultra high transmission performance and excellent Layer 2 technologies, but also IPv4/IPv6 software VLAN routing feature which allows to cross over different VLANs and different IP addresses for the purpose of having a highly-secure, flexible management and simpler networking application.

Robust Layer 2 Features

The IGS-5225 Series can be programmed for advanced Layer 2 switch management functions such as dynamic port link aggregation, 802.1Q tagged VLAN, Q-in-Q VLAN, private VLAN, Multiple Spanning Tree Protocol (MSTP), Layer 2 to Layer 4 QoS, bandwidth control, IGMP snooping and MLD snooping. Via the aggregation of supporting ports, the IGS-5225 Series allows the operation of a high-speed trunk group that comes with multiple ports and supports fail-over as well.

Efficient Management

For efficient management, the IGS-5225-4T2S is equipped with CLI, Web GUI and SNMP management interfaces.

  • With the built-in Web-based management interface, it offers an easy-to-use, platform-independent management and configuration facility.
  • For text-based management, it can be accessed via Serial console interface/Telnet/SSH.
  • For standard-based monitor and management software, it offers SNMPv3 connection which encrypts the packet content at each session for secure remote management.

Powerful Security

The IGS-5225 series offers comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1X Port-based and MAC-based user and device authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy.

Intelligent SFP Diagnosis Mechanism

The IGS-5225 series supports SFP-DDM (Digital Diagnostic Monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.

SFP DDM

1588 Time Protocol for Industrial Computing Networks

The IGS-5225 series is ideal for telecom and Carrier Ethernet applications, supporting MEF service delivery and timing over packet solutions for IEEE 1588 and synchronous Ethernet.

1588 Time Sync

Modbus TCP provides Flexible Network Connectivity for Factory Automation

With the supported Modbus TCP/IP Protocol, the IGS-5225 series can be easily integrated with SCADA systems, HMI systems and other data acquisition systems in factory floors. It enables administrators to remotely monitor the industrial Ethernet switch’s operating information, port information and communication status, thus easily achieving enhanced monitoring and maintenance of the entire factory.

PLANET Network Management System (NMS) Solution

The IGS-5225-4T2S supports PLANET’s NMS via CloudViewer App which is an Intelligent App to monitor your network from the cloud. With a cloud network, it makes data and services available from anywhere with an Internet connection. With PLANET CloudViewer, your network status can be monitored in real time anytime, anywhere via your mobile phone or tablet. User can easily check network status, device information, and port and PoE statuses from the cloud to reduce management costs.

Cloudviewer App: Download here for ANDROID or IOS.
