IPOE-175S Industrial IP67 802.3bt PoE++ Splitter (DC 12V, -40~75C)

IPOE-175S Industrial IP67 802.3bt PoE++ Splitter (DC 12V, -40~75C)

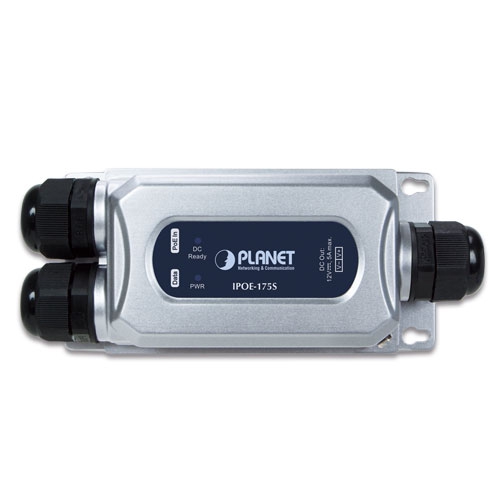

The IPOE-175S is an Industrial-grade, IP67-rated 802.3bt PoE Splitter which delivers Ethernet digital data and PoE power from an 802.3bt PoE++ PSE over a UTP cable.

  • Ports: 1 10/100/1000T
  • Console Port: No
  • Type: Unmanaged
  • PoE Ports: 1
  • Standard: 802.3bt PoE++ (Type 3)
  • Power Consumption: Full loading w/max. 12V DC, 5A output: 70wa
  • Operating Temperature: -40  to 75°C
  • TAA Compliant

Industrial PoE Splitter

Highly Convenient and Robust Industrial PoE++ Splitter

To fulfill the growing outdoor PoE applications, PLANET IPOE-175S is an Industrial-grade, IP67-rated 802.3bt Power over Ethernet Splitter which delivers the Ethernet digital data and PoE power from an 802.3bt PoE++ PSE (power source equipment) over a UTP cable. It enables to deliver of a maximum of 60-watt 12V DC power output to a non-PoE powered Ethernet device. Also, supports passive 10/100/1000Mbps Ethernet connection and distance up to 100 meters.

IPOE-175S Features

The IPOE-175S is designed to work under the operating temperature range from -40 to 75°C. It’s an ideal solution to transfer power to a traditional network device with high power demand directly without the need to install additional power outlets, and electrical cabling in the industrial environment.

IPOE-175S Power

Quick and Easy 802.3bt PoE++ Network Deployment

If the existing network deployment consists of non-PoE powered devices that require high power to function, the IPOE-175S, powered by an 802.3 PoE++ power sourcing equipment, can feed the PDs with 802.3bt PoE++  as the splitter can split the data and power into two streams. The PDs get their power through the splitter’s DC jack and the RJ45 interface accepts only Ethernet data. The following non-PoE PDs can be turned into a PoE++ environment with the IPOE-175S:

  • PTZ speed dome camera
  • Thin client
  • AIO (All-in-One) touch PC
  • Remote digital signage display
  • Non-PoE network devices that need higher power to work normally

IPOE-175S Application

Weather-proof RJ45 Ethernet Connector and Shielded Plug

The IPOE-175S is ideal for installing an extended range of outdoor PoE devices such as outdoor PoE wireless access points, outdoor PoE IP cameras, outdoor PoE IP intercoms and many more. The IPOE-175S is equipped with 3 waterproof cable glands for direct-attach applications. Assembled with a waterproof cable gland, it can make the general connector weather-proof and provides a tight and strong connection. Moreover, it comes with the industrial protection rating of IP67 capable of withstanding humidity, dirt, dust, shock, vibrations, heat and cold.

Environmentally-hardened Design

With an industrial-level IP67-rated aluminum case, the IPOE-175S provides a high level of immunity against electromagnetic interference, and can protect itself from dust and water ingress, and to operate under the temperature range from -40 to 75°C. All these features ensure the highest level of reliability for mission-critical applications in any difficult environment.

Robust Protections

The IPOE-175S provides ±8KV DC for Ethernet ESD protection and ±6KV surge immunity to improve product stability and protects users’ networks, making sure the flow of operation does not fluctuate.

Making Network Easier and More Reliable

The space-saving industrial 802.3bt PoE++ splitter IPOE-175S can be placed in almost any difficult environment. It allows either DIN-rail or wall mounting for efficient use of cabinet space. Being able to operate under the temperature range from -40 to 75°C, the IPOE-175S is the ideal product for co-working with an industrial 802.3bt PoE++ type-4 injector that can feed the power to non-PoE devices up to 100 meters (328 feet) away in those harsh environments.

IPOE-175S Application DIagram
