IPOE-470 Industrial 4-port 10/100/1000T 802.3bt PoE++ Injector Hub

IPOE-470 Industrial PoE Injector FrontIPOE-470 Industrial PoE Injector TopPlanetechPRO Lifetime Warranty
IPOE-470 Industrial PoE Injector
IPOE-470 Industrial PoE Injector Front
IPOE-470 Industrial PoE Injector Top
PlanetechPRO Lifetime Warranty

IPOE-470 Industrial 4-port 10/100/1000T 802.3bt PoE++ Injector Hub

$294.40

IPOE-470

The IPOE-470 4-port industrial IEEE 802.3bt PoE++ injector hub features four 10/100/1000BASE-T 95W 802.3bt type-4 PoE++ injector ports.

  • Interface: 4 Data-In, 4 Data + PoE Out, 1 6-pin Terminal Block
  • Power Requirement: 48~54V DC, redundant power w/reverse polarity protection
  • Standard: 802.3bt (Type 4)
  • Ethernet Data Rate: 10/100/1000Mbps
  • End-Span/Mid-Span: End-Span + Mid-Span
  • Operating Temperature: -40 to 75°C
  • TAA Compliant

Note: ALL Industrial Injectors do NOT include a power supply. Click here to shop all Industrial Power Supply.

IPOE-470

Industrial 4-Port PoE Injector

Compact and Robust Industrial 802.3bt PoE++ Network Solution

PLANET IPOE-470 4-port industrial IEEE 802.3bt PoE++ injector hub series features four 10/100/1000BASE-T 95-watt 802.3bt type-4 PoE++ injector ports. With a total PoE budget of 240 watts, it delivers 802.3bt PoE++ power over Ethernet UTP cables which allow data and power to transmit simultaneously to a remote 802.3bt/at powered device (PD).

The IPOE-470 series provides a quick, safe and cost-effective 802.3bt PoE++ network solution for small businesses and enterprises. It is designed to perfectly upgrade an existing network infrastructure to 802.3bt PoE++ network system without replacing the existing Ethernet switches and also enables centralization of the power supply.

The IPOE-470 series includes two models: IPOE-470 and IPOE-470-12V.

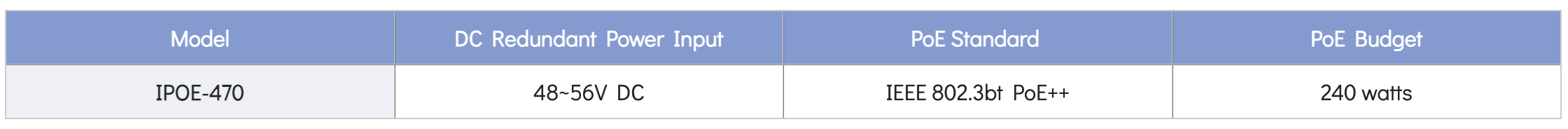

IPOE-470 Series Chart

802.3bt PoE++ Meets Ultra Power Demands of Powered Devices

As the IPOE-470 series adopts the IEEE 802.bt PoE++ standard and PoH technology, it is capable to source up to 95 watts of power by using all the four pairs of standard Cat5e/6 Ethernet cabling to deliver power and full-speed data to each remote PoE compliant PD. It possesses the triple amount of the power capability when compared to the conventional 802.3at PoE+ and is an ideal solution to satisfy the growing demand for higher power consuming network PDs, such as:

  • PoE PTZ speed dome cameras
  • Network devices
  • Thin clients
  • AIO (all-in-one) touch PCs, point of sale (POS) and information kiosks
  • Remote digital signage displays
  • PoE lightings

Quick and Easy 802.3bt/at PoE Network Deployment

The IPOE-470 series is installed between a regular Ethernet Switch and the PDs. Four ports are network (Ethernet) ports for data input while the other four ports are PoE++ ports for data and power output. Both power and data are transferred simultaneously over the UTP cables to various 802.3bt/at PDs without affecting the existing network performance and functions.

With data and Power over Ethernet from one unit, the IPOE-470 series can reduce power cable deployment and eliminate the need for dedicated electrical outlets on the wall, ceiling or any unreachable place.

IPOE-470 Series Application Diagram

Intelligent LED Indicator for Power Input and Real-time PoE Usage

The IPOE-470 series helps users to monitor the current status of power input and PoE power usage easily and efficiently via its advanced LED indication. The “Power Input” allows user to know the status of dual DC power input. The “PoE Usage” displayed on the panel of the IPOE-470 series has three amber LED indicators of different power usages indicating 80W, 160W and 240W. Via the power usage LED, the IPOE-470 series enables the administrator to monitor the status of the power usage of the connected PDs in real time.

IPOE-470 Series LED Light PoE Usage

Ultra Power Budget for PoE Extension

With up to 95-watt PoE output capability, the IPOE-470 series can extend much longer distances by using PLANET PoE Extender for powering up the PoE PD which can be installed over more than 100 meters away.

IPOE-470 Series Ultra Power Budget

Stable Operating Performance under Difficult Environments

Today, the PoE demand expands from commercial applications to many critical networks in the harsh environment. The IPOE-470 series provides a high level of immunity against electromagnetic interference and heavy electrical surges typical of environments found on plant floors or in curb-side traffic control cabinets.

The IPOE-470 series can be easily installed by way of Plug and Play and operates stably under temperature range from -40 to 75°C which enables the users to conveniently apply the device in almost any location of the network. The IPOE-470 series is also equipped with a compact IP30 standard metal case that allows either DIN-rail or wall mounting for space-limited environments.

Robust Protection

The IPOE-470 series provides contact discharge of ±6KV DC and air discharge of ±8KV DC for Ethernet ESD protection. It also supports ±6KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.
