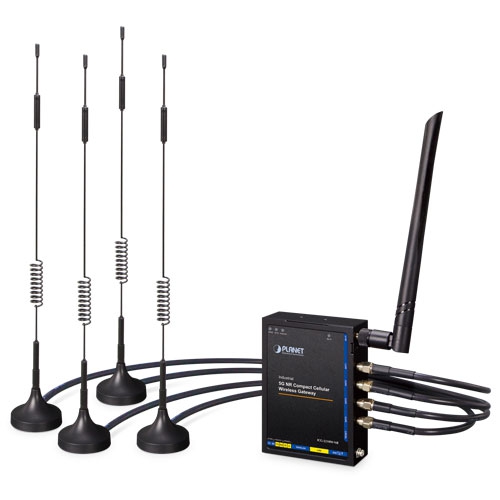

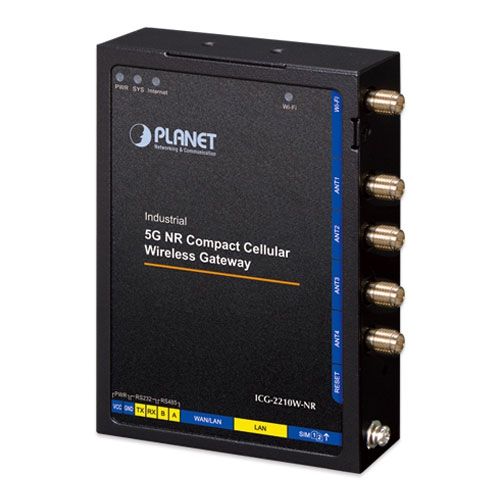

ICG-2210W-NR Industrial 5G NR Compact Cellular Wireless Gateway with 2-Port 10/100/1000T

ICG-2210W-NR Industrial 5G NR Compact Cellular Wireless Gateway with 2-Port 10/100/1000T



The ICG-2210W-NR including 5G NR (New Radio) technology, dual WAN, and two micro SIM slots, it goes further with dual high-speed Gigabit Ethernet LAN ports and WAN/LAN ports, 802.11ac Wi-Fi capability, and serial RS232/RS485 communication interface.

  • Ports: 2 10/100/1000T, 1 LAN , 1 WAN/LAN
  • LTE Data Rate: B38/B40/B41/B42/B43

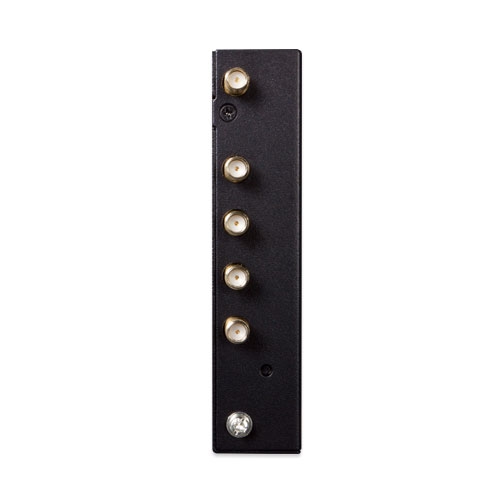

  • Cellular Antenna: 5 x dBi external antennas with SMA connectors for 5G-NR
  • Power Requirements: 9~36V DC, DC In
  • Power Consumption: 14.4W/49.1BTU
  • Operating Temperature: -40º to 75ºC
  • 2 micro SIM card slots
  • TAA Compliant

Note: ALL Industrial products do NOT include a power supply. Click here to shop all Industrial Power Supply.


Industrial 5G Wireless Gateway

Powerful 5G NR and Wi-Fi 6 Industrial Network Solution

PLANET ICG-2210W-NR is an industrial-grade wireless cellular gateway for demanding mobile applications. Packed with cutting-edge features, including 5G NR (New Radio) technology, dual WAN, and two micro SIM slots, it goes further with dual high-speed Gigabit Ethernet LAN ports and WAN/LAN ports, 802.11ac Wi-Fi capability, and serial RS232/RS485 communication interface. With a compact design, the ICG-2210W-NR is perfect for confined spaces or vehicular applications. The addition of ICG-2210W-NR failover ensures uninterrupted connectivity in dynamic environments. Tailored for versatility, it excels in harsh industrial environments and vehicular systems. Whether in tight quarters, mobile setups, or challenging industrial settings, the ICG-2210W-NR gateway ensures seamless and reliable connectivity. Its adaptability, coupled with advanced features, makes it the ideal solution for compact spaces and demanding applications.

Automatic Failover between 5G NR and Wired WAN

The ICG-2210W-NR boasts Gigabyte Ethernet wired WAN and 5G NR interfaces with seamless failover capabilities, ensuring continuous Internet access. It provides the flexibility to prioritize between 5G NR and wired WAN connections. In case of a primary WAN interface failure, the secondary interface swiftly restores the connection, ensuring uninterrupted connectivity at all times.

Ultra-Fast 4G/5G Network*

The ICG-2210W-NR supports 5G NR DL speed of 2.4 Gbps faster than 4G LTE DL speed of 1 Gbps. The wide spectrum bandwidth accelerates internet speeds and reduces network latency for premium and time-sensitive connectivity services. The ICG-2210W-NR also supports multi-band connectivity including LTE FDD/TDD, WCDMA and GSM for a wide range of applications.

*The real 5G NR/4G LTE data rate is dependent on local service provider.

Dual SIM Design

To enhance reliability, the ICG-2210W-NR is equipped with dual micro SIM slots that support failover and roaming over to ensure uninterrupted connectivity for mission-critical cellular communications. It provides a more flexible and easier way for users to create an instant network sharing service via 5G-NR in public places like transportations, outdoor events, etc.

Wireless 11ac Brings Excellent Data Link Speed

PLANET ICG-2210W-NR, adopting the IEEE 802.11ac Wave 2 standard, provides a high-speed transmission of power and data, meaning two remote nodes in the 5GHz frequency band can be bridged. The 2.4GHz wireless connection can also be used simultaneously.

Ideal High-Availability VPN Security Router Solution for Industrial Environment

The ICG-2210W-NR provides complete data security and privacy for accessing and exchanging the most sensitive data, built-in IPSec VPN function with DES/3DES/AES encryption and MD5/SHA-1/SHA-256/SHA-384/SHA-512 authentication, and GRE, SSL, PPTP and L2TP server mechanism. The full VPN capability in the ICG-2210W-NR makes the connection secure, more flexible, and more capable.

Excellent Ability in Threat Defense

The ICG-2210W-NR has built-in SPI (stateful packet inspection) firewall and DoS/DDoS attack mitigation functions to provide high efficiency and extensive protection for your network. Thus, virtual server and DMZ functions can let you set up servers in the Intranet and still provide services to the Internet users.

Cybersecurity Network Solution to Minimize Security Risks

The cybersecurity feature included to protect the switch management in a mission-critical network virtually needs no effort and cost to install. For efficient management, the ICG-2210W-NR is equipped with HTTPS web and SNMP management interfaces. With the built-in web-based management interface, the ICG-2210W-NR offers an easy-to-use, platform independent management and configuration facility. The ICG-2210W-NR supports SNMP and it can be managed via any management software based on the standard SNMP protocol.
