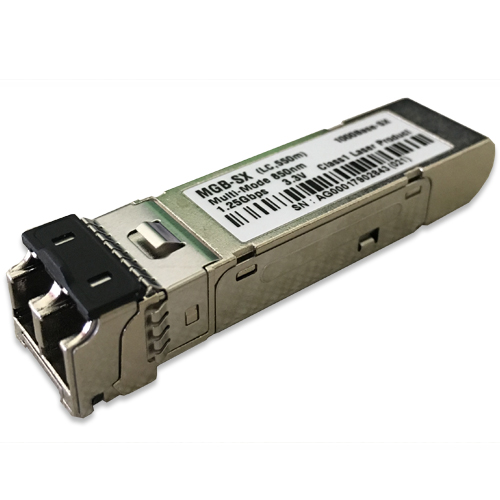

MGB-SX Mini GBIC SX Module – 550M


The MGB-SX by Planet Technology is an 1000Mbps Gigabit Ethernet SFP Fiber Transceiver.

  • Package: SFP
  • PHY Type: 1000Base-SX
  • Fiber Type: Multimode
  • Connector: LC
  • DDM: Yes
  • Wavelength: 850nm
  • Max. Distance: 550m
  • Operating Temperature: 0 to 60°C
Planet Technology USA's 1000Mbps Gigabit Ethernet SFP Fiber Transceiver modules operate with an integrated duplex data link over single mode optical fiber. These Small Form Factor Pluggable (SFP) transceivers work with PLANET's Gigabit SFP interface to provide a reliable, high-performing Gigabit Ethernet network. The device's hot pluggable feature enables network administers to easily install SFP MSA compliant ports without interrupting the host equipment in operation.PLANET Technology SFP Optical Transceivers are designed for use with PLANET SFP Media ConvertersPLANET Switches and third party equipment that supports SFP transceivers.


  • PHY Type: 1000BASE-SX
  • Fiber Type: Multimode
  • Connector: LC
  • Wavelength: 850nm
  • Maximum Distance: 550m
  • Operating Temperature: 0 ~ 60°C
