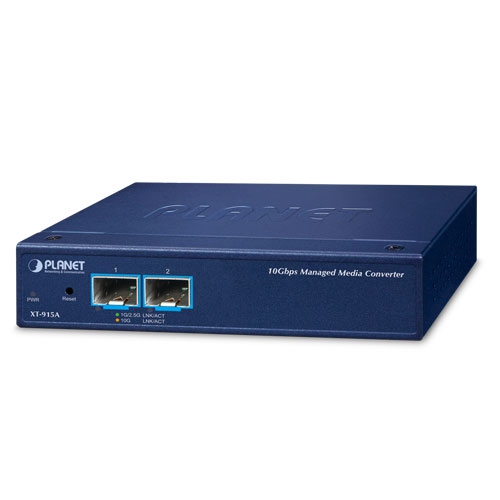

XT-915A 2-Port 10G/1GBASE-X SFP+ Managed Media Converter

XT-915A 2-Port 10G/1GBASE-X SFP+ Managed Media Converter

$196.00

XT-915A

The XT-915A offers two 10G fiber ports, which can be used for single mode and multimode conversion, as well as for converting between PON and Ethernet.

  • Speed: 2-Port 10G BASE-T to 1-Port 10G BASE-X SFP+
  • Optical Interface: *SFP module required and sold separately*
  • Installation: DIN Rail or Wall Mount
  • Power Requirement: 12V DC, 1.5A max.
  • Power Consumption: 9.84W / 33.58BTU per hour max. (full loading)
  • TAA Compliant
XT-915A

2-Port 10G SFP+ Managed Media Converter

Ultra-fast Connections and Secure Management

PLANET XT-915A high-performance media converter improves network connectivity and provides sophisticated management capabilities. It is the first 10G media converter in the industry with standalone secure management, making it the best option for enterprise and telecom remote management and monitoring. The XT-915A allows for remote management via an intuitive web interface, command line interface (CLI) and SNMP protocol, enabling easy monitoring and configuration of the converter from anywhere.

Our advanced converter features two 10G SFP+ ports that combine the strength of 10G connectivity with the long-range transmission capabilities of fiber ports. This powerful yet compact solution makes it the ideal choice for businesses looking to boost their network speed and functionality

Two Fiber Optic Ports Double the Distance of Deployment

The XT-915A offers two 10G fiber ports, which can be used for single mode and multimode conversion, as well as for converting between PON and Ethernet. Since both ports are fiber optic, the transmission distance can reach up to 120km on both ends, significantly extending the service coverage.

XT-900 Series Application

Link Fault Pass-through

Link Fault Pass-through is a networking feature. It facilitates the detection and propagation of link faults or errors from one network device to another. It helps maintain network reliability and minimizes downtime by allowing devices to dynamically respond to link faults. Link Fault Pass-through improves fault detection and enables faster troubleshooting and resolution processes.

How it works:

  • When a link fault occurs, the device experiencing the fault generates a notification.
  • This notification is then forwarded to other connected devices using Link Fault Pass-through.
  • Upon receiving the link fault information, the connected devices become aware of the fault.
  • This awareness enables them to take appropriate actions, such as rerouting traffic or disabling the affected port.

XT-900 Series Link Fault Pass Through

Network with Cybersecurity Helps Minimize Risks

The XT-915A is equipped with enhanced cybersecurity features to fend off cyber threats and attacks. It supports SSHv2, TLSv1.2, and SNMPv3 protocols to provide strong protection against advanced threats. To safely transmit critical data to colleagues or customers, the XT-915A’s cybersecurity feature protects network management and enhances the security of mission-critical networks without incurring any additional deployment cost or effort.

XT-900 Series Cybersecurity Management

Redundant Ring, Fast Recovery for Critical Network Applications

The XT-915A supports software-based redundant ring technology and features strong, rapid self-recovery capability to prevent interruption and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, ensuring rapid self-recovery in ring networks. With this advanced feature, the data link recovery time can be as fast as 500ms.

XT-900 Series ERPS Ring

IPv6/IPv4 Dual Stack Management

Supporting both IPv6 and IPv4 protocols, the XT-915A helps the enterprises and telecoms to step in the IPv6 era with the lowest investment as their network facilities need not be replaced or overhauled if the IPv6 FTTx edge network is set up.

XT-900 Series IPv4/IPv6 Management

SNMP for Comprehensive Network Monitoring and Centralized Control

SNMP (Simple Network Management Protocol) provides network monitoring and management capabilities by gathering real-time information about network devices. By proactively identifying and addressing network issues, reliability and performance are improved. SNMP also facilitates centralized control of network devices, allowing for monitoring and configuration of multiple devices from a single location, reducing manual effort and enhancing operational efficiency.

Layer 2 Features

The device has a 16K-entry MAC address table that automatically removes inactive addresses. Its backbone supports speeds of up to 40Gbps, and it can handle Jumbo Frames up to 1.2K in size. The device is equipped with Storm Control to manage Broadcast/Multicast/Unknown-Unicast traffic to prevent excessive network flooding.

Efficient Traffic Control

The XT-915A media converter boasts advanced QoS features and robust traffic management capabilities, optimizing the delivery of business-class data, voice, and video solutions. Its feature set includes broadcast/multicast/unicast storm control, per-port bandwidth control, and 802.1p CoS/DSCP/IP Precedence QoS priority and remarking. These capabilities guarantee optimal performance for VoIP and video stream transmission, maximizing the utilization of limited network resources for enterprises

Intelligent SFP Diagnosis Mechanism

The XT-915A supports the SFP-DDM (digital diagnostic monitor) function, which greatly helps network administrators easily monitor real-time parameters of the SFP transceivers. These parameters include optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.

SFP DDM

Remote Management Solution

PLANET’s Universal Network Management System (UNI-NMS) and CloudViewer app support IT staff in remotely managing all network devices and monitoring the operation statuses of the XT-915A. These systems are designed for both enterprises and industries where the deployments of the XT-915A can be remote. This allows for bugs or faulty conditions to be found without having to go to the actual location. With UNI-NMS or CloudViewer app, all kinds of businesses can now be speedily and efficiently managed from one platform.

XT-900 Series Cloudviewer App
